Axis L

UGR :

<9

Efficacy (Max) :

135 lm/W

CRI

90+

Aperture Size :

80 mm

Beam Angles :

39°/ 55°/ 65°

IP :

IP20

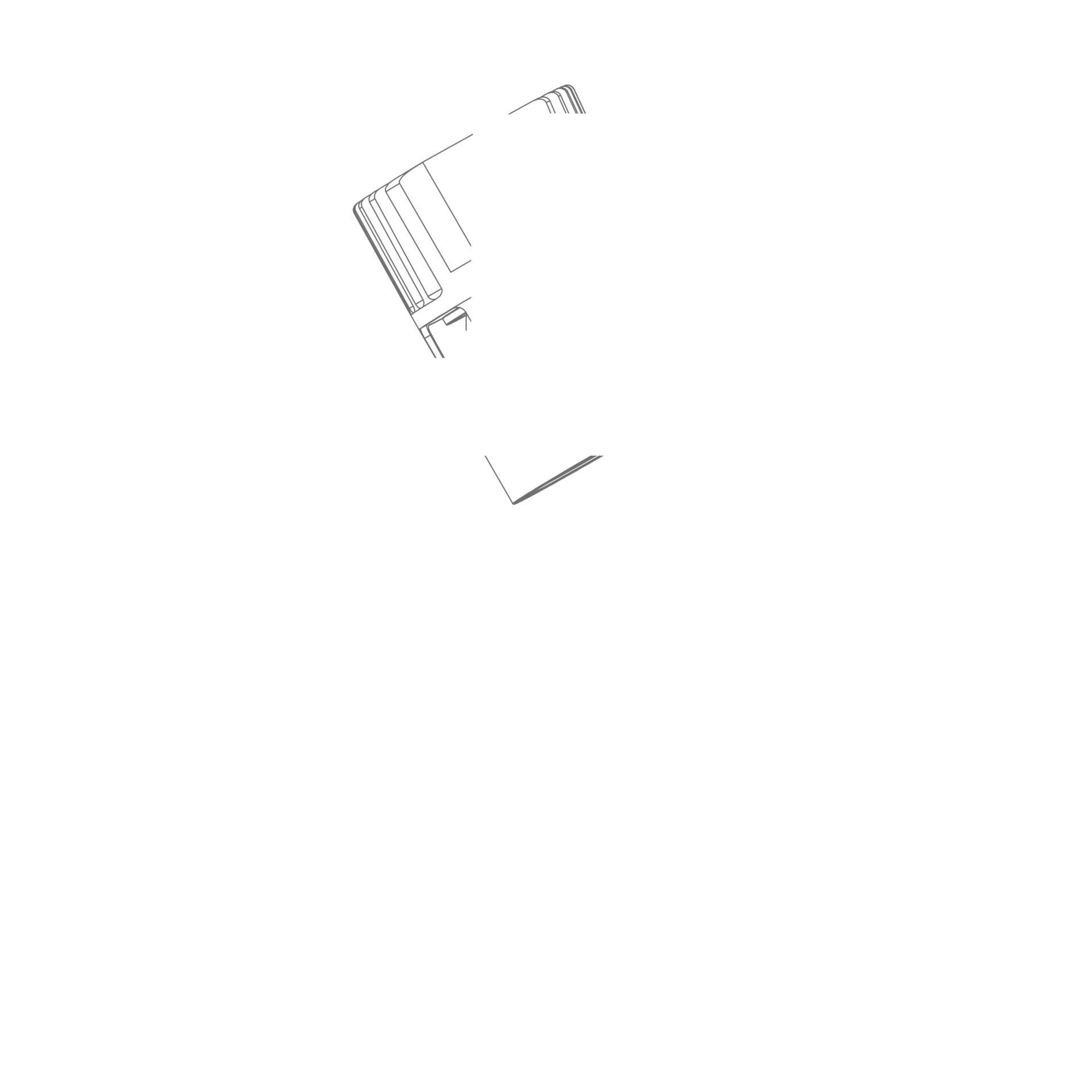

Cutout = Ø147 mm

Illuminate your spaces with precision and efficiency using our advanced LED lighting Fixture. Designed to deliver uniform, homogeneous lighting with minimal spillover, this fixture maximizes lumens output while creating a clean, refined ambiance. Engineered with state-of-the-art Bartenbach optics, this fixture ensures top-tier energy efficiency, providing optimal brightness for any setting. Our LED light?s innovative design also reduces glare, making it ideal for a wide range of applications?from modern workspaces to cozy residential spaces. Upgrade to a lighting solution that combines sleek style with unparalleled performance.

Highly efficient optics

Utilizing advanced LED technology, our lights deliver superior brightness while significantly reducing power usage. This also helps contribute to a greener environment by minimizing carbon footprint.

Degradation free – long life optics

With Alanod Miro Silver (Ultra-Technology) our products gives uniform lighting with highly accurate colours for the longer period of time without risk of ageing and yellowing. This gives pleasant experience of merchandise to the viewer and reduces maintenance expense of the ﬁxture for the merchandiser.

Reduced spillage – more concentrated light

With micro-facet technology, our products achieve a perfect cut-off, minimizing glare and ensuring comfortable illumination. This feature is particularly beneficial in creating visually comfortable spaces.

High CRI 90+

With New Edge patented technology Designed by bartenbach & IT ENSURE 40% more light as compared to conventional fixtures also reducing considerable Glare

Sharp cut-off, minimal spill. lndustry leading optics, crafted in exclusive partnership with Bartenbach

Technical Specifications

Color Temperature (CCT)	Beam Angle	Wattage	Lumens	UGR	IP Rating	Efficacy	Download TDS
2700K	39°	48 W	3559 lm	<9	IP20	74 lm/W	Axis L Recessed Adjustable 27K N
2700K	55°	48 W	5120 lm	<19	IP20	106 lm/W	Axis L Recessed Adjustable 27K M
2700K	65°	48 W	5208 lm	<19	IP20	108 lm/W	Axis L Recessed Adjustable 27K W
3000K	39°	48 W	4401 lm	<9	IP20	92 lm/W	Axis L Recessed Adjustable 3K N
3000K	55°	48 W	6312 lm	<15	IP20	132 lm/W	Axis L Recessed Adjustable 3K M
3000K	65°	48 W	6517 lm	<21	IP20	135 lm/W	Axis L Recessed Adjustable 3K W
4000K	39°	48 W	4098 lm	<9	IP20	86 lm/W	Axis L Recessed Adjustable 4K N
4000K	55°	48 W	5671 lm	<14	IP20	119 lm/W	Axis L Recessed Adjustable 4K M
4000K	65°	48 W	5909 lm	<21	IP20	124 lm/W	Axis L Recessed Adjustable 4K W
