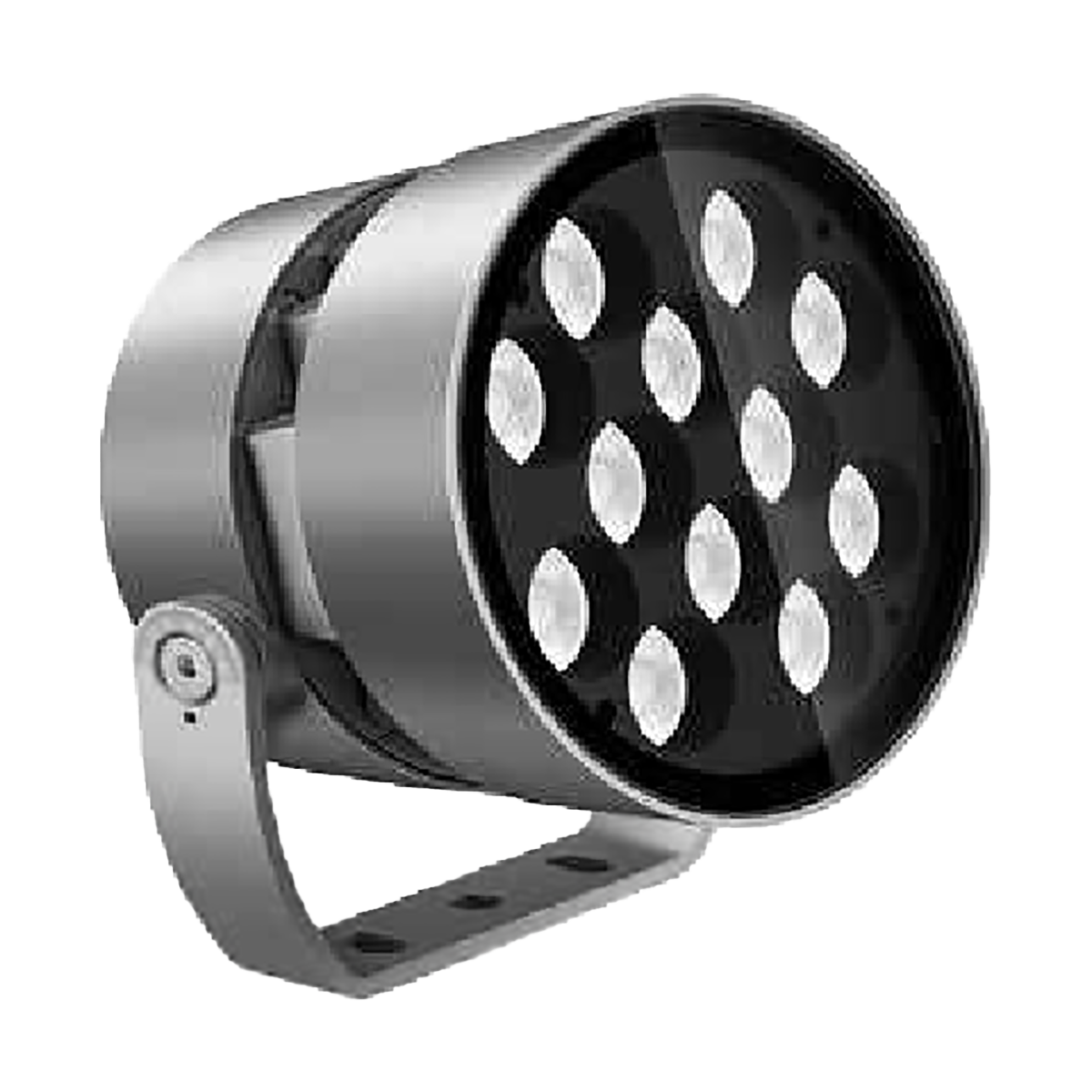

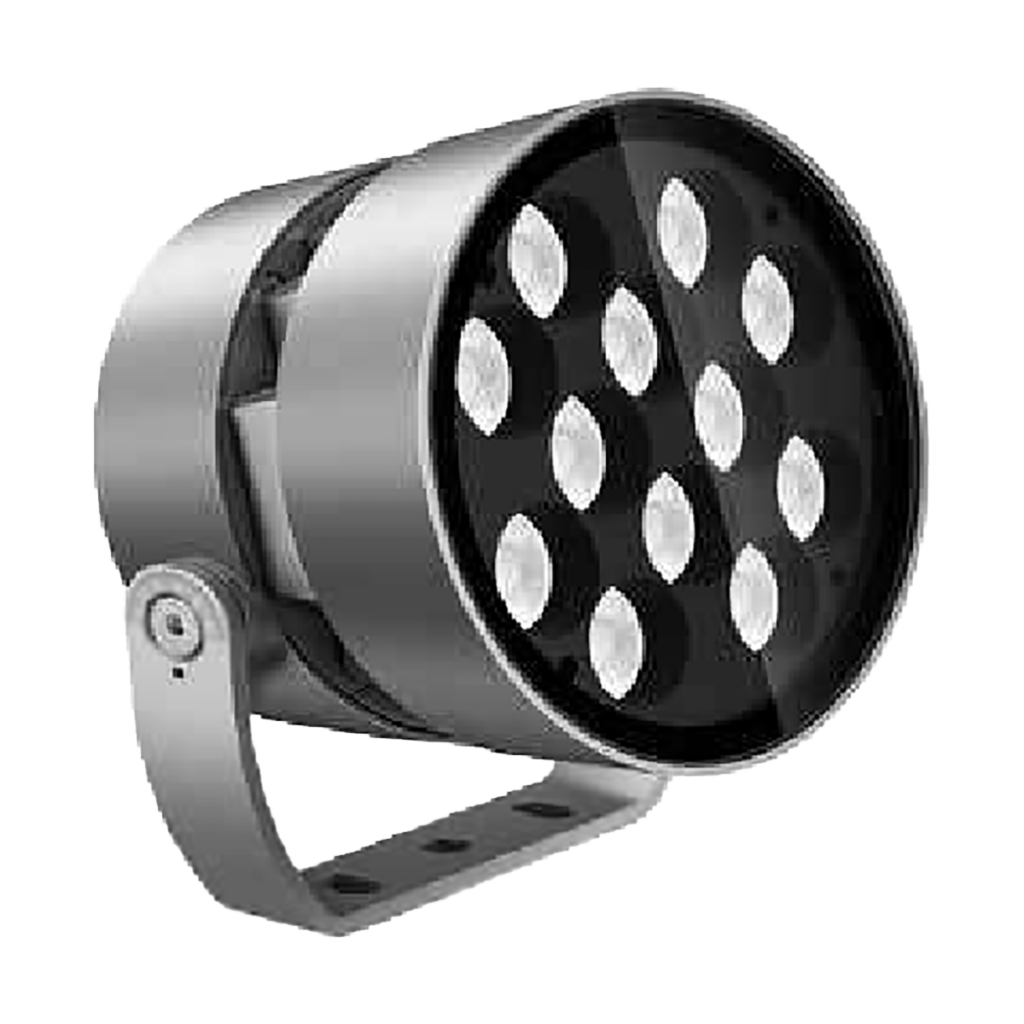

Helios 12 LED

View Technical Specifications

Superior Light Transmission

Crafted with Hecker glass, delivering up to 98% light transmission for brighter, more effective illumination with minimal loss.

Advanced IR-Coated Optics

Features special IR-coated glass that significantly reduces reflective and transmission losses — maximizing lighting performance and energy efficiency.

Condensation-Free Design

Engineered with an integrated air-vent system to prevent internal condensation, ensuring consistent performance in all weather conditions.

Corrosion-Resistant Finish

Protected with a rust-proof, corrosion-resistant powder coating, built to withstand extreme outdoor environments for years.

Rugged Outdoor Protection

Designed with IP65 and IK07 to IK10 ratings, ensuring durability against water, dust, and impact — ideal for harsh outdoor conditions.

UV-Resistant Build

Constructed with anti-UV materials (Level 8 resistance) to prevent discoloration and degradation under prolonged sun exposure.

Wide Coverage. Fewer Fixtures.

Each fixture is optimized to cover larger areas, reducing the total number of fixtures needed — lowering costs and simplifying installation.

Sharp cut-off, minimal spill. lndustry leading optics, crafted in exclusive partnership with Bartenbach

Know More

Technical Specifications

Colour temperature

Beam Angle

Wattage

Efficacy

Color Temperature (CCT)Luminaire DimensionBeam AngleWattageLumensUGRIP RatingEfficacyDownload TDS
2700K10°2800 lmIP66Helios 10° IJK
2700K30°3000 lmIP66Helios 30° IJK

Let’s discuss your project

Contact us through the links below and we’ll get back to you within 48 hours!

General Inquiry
Dealership Inquiry
Concerns/Complaints

PL06822

/ Downloads

Technical Data

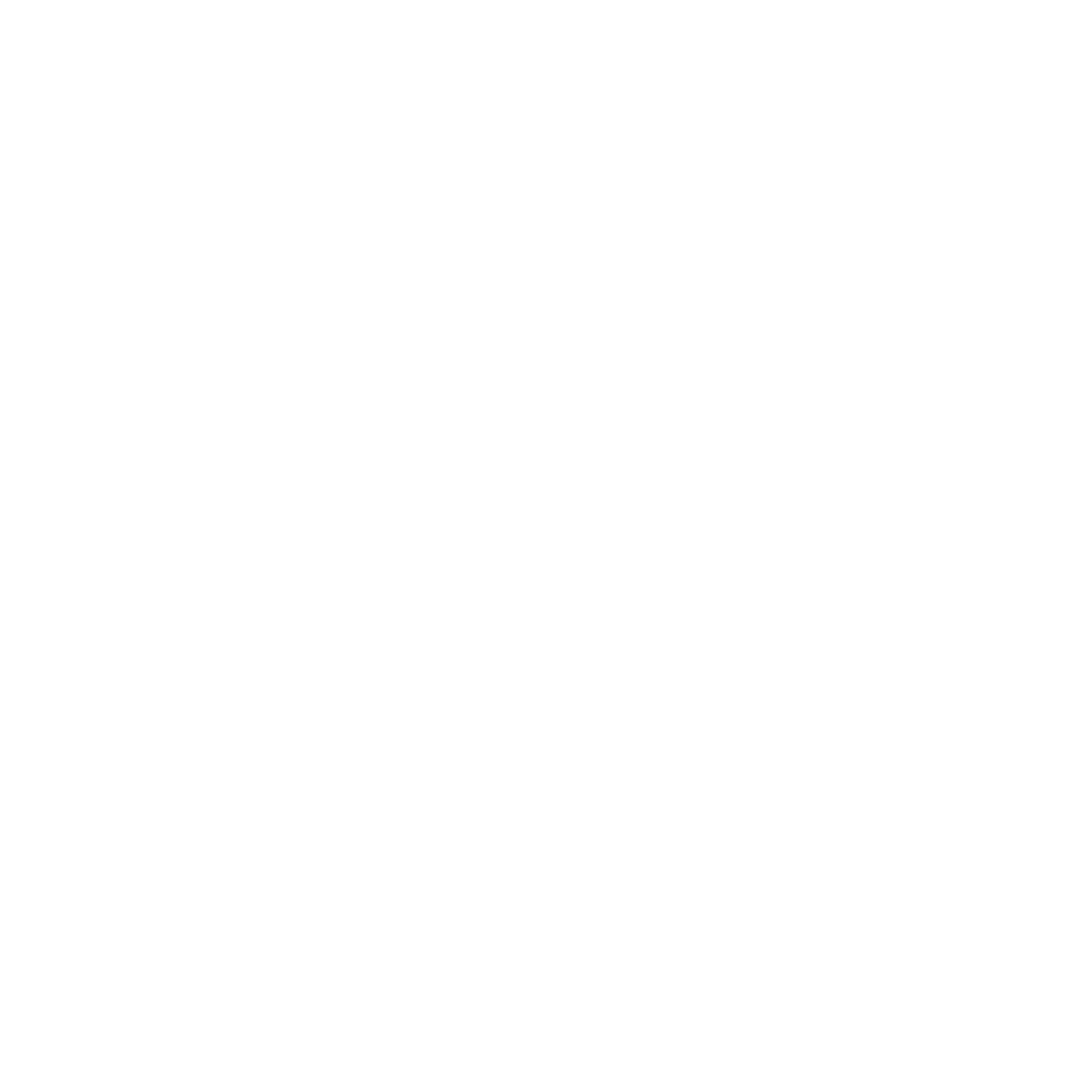

Technical drawing:2D

Data Sheet

Photometric data: IES

Photo selection

Choose your Perfect Finish

Explore the full range of finishes available for the product
