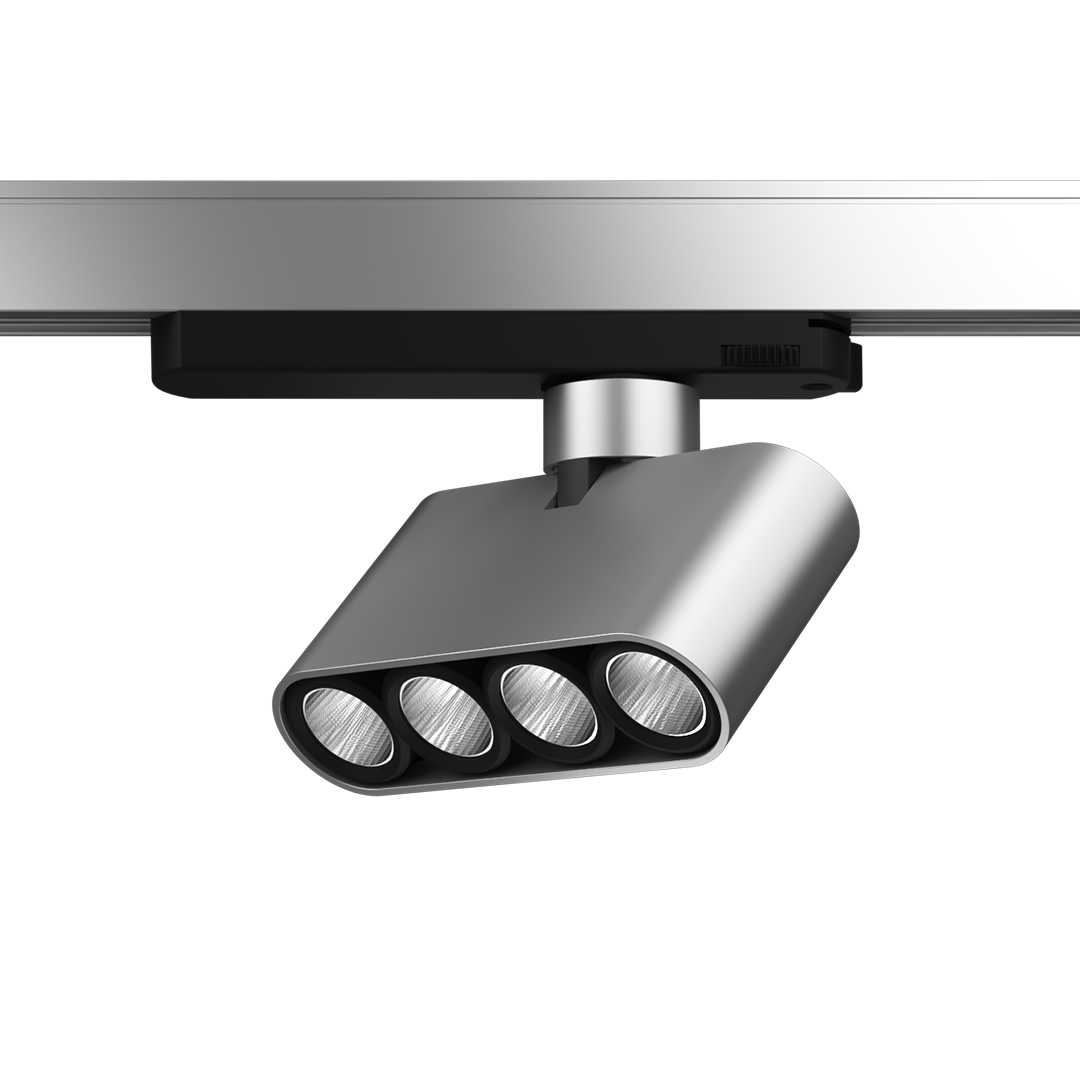

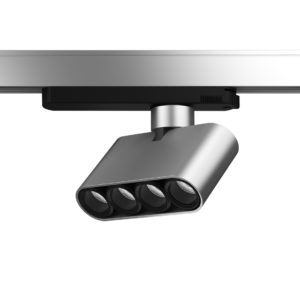

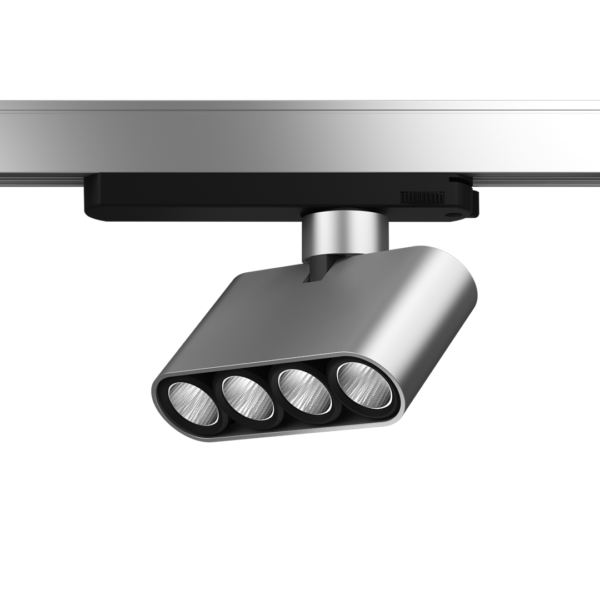

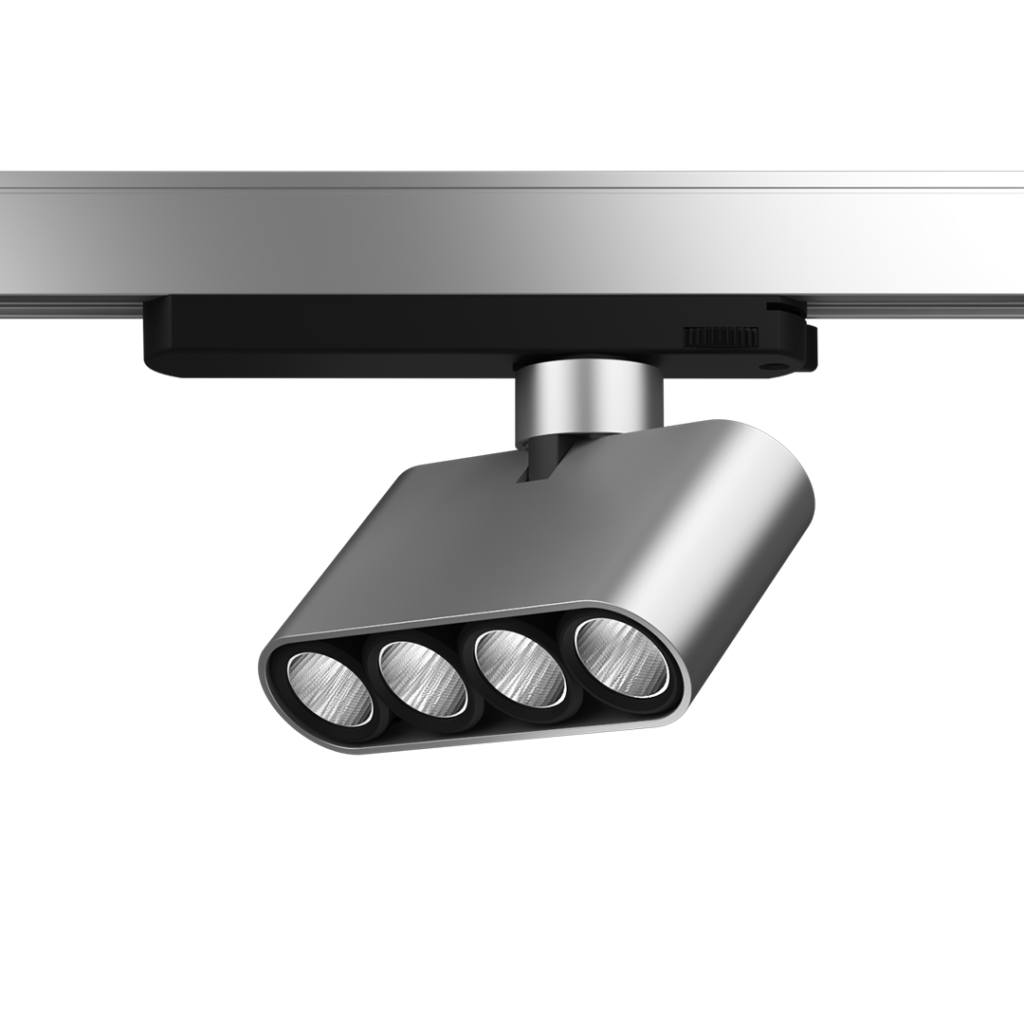

Magnus Track Linear 4X

UGR :

<9

Efficacy (Max) :

91 lm/W

CRI

90+

Aperture Size :

26 mm

Beam Angles :

32°, 53°, 82°

IP :

IP20

Illuminate your spaces with precision and efficiency using our advanced LED lighting Fixture. Designed to deliver uniform, homogeneous lighting with minimal spillover, this fixture maximizes lumens output while creating a clean, refined ambiance. Engineered with state-of-the-art Bartenbach optics, this fixture ensures top-tier energy efficiency, providing optimal brightness for any setting.Our LED light’s innovative design also reduces glare, making it ideal for a wide range of applications?from modern workspaces to cozy residential spaces. Upgrade to a lighting solution that combines sleek style with unparalleled performance.

High efficiency

Utilizing advanced LED technology, Perdu lights deliver superior brightness while significantly reducing power usage. This also helps contribute to a greener environment by minimizing carbon footprint.

High Uniformity

Precision-engineered optics and high-quality LEDs work together to eliminate dark spots and glare, creating an ideal environment where clarity and consistency are paramount.

Architecturally integrated

The minimalist design allows Perdu to become an unobtrusive part of the ceiling, maintaining the clean lines between elegance in simplicity and sophistication of the space.

Miniature Aperture

The miniature aperture size ensures that the light source remains discreet while delivering powerful illumination exactly where it’s needed, which allows for precise and focused lighting effects.

Sharp cut-off, minimal spill. lndustry leading optics, crafted in exclusive partnership with Bartenbach

Technical Specifications

Color Temperature (CCT)	Beam Angle	Wattage	Lumens	UGR	IP Rating	Efficacy	Download TDS
5700K	83°	19 W	1737 lm	<26	IP20	91 lm/W	Magnus 4x Linear Track ACDC 57K W
5700K	53°	19 W	1638 lm	<18	IP20	87 lm/W	Magnus 4x Linear Track ACDC 57K M
5700K	32°	19 W	1490 lm	<9	IP20	78 lm/W	Magnus 4x Linear Track ACDC 57K N
4000K	82°	19 W	1812 lm	<26	IP20	94 lm/W	Magnus 4x Track ACDC Linear 4K W 01
4000K	53°	19 W	1737 lm	<18	IP20	90 lm/W	Magnus 4x Track ACDC Linear 4K M 02
4000K	32°	19 W	1666 lm	<9	IP20	88 lm/W	Magnus 4x Track ACDC Linear 4K N 03
3000K	82°	19 W	1635 lm	<25	IP20	87 lm/W	Magnus 4x Track ACDC Linear 3K W 04
3000K	53°	19 W	1556 lm	<11	IP20	81 lm/W	Magnus 4x Track ACDC Linear 3K M 05
3000K	32°	19 W	1465 lm	<9	IP20	76 lm/W	Magnus 4x Track ACDC Linear 3K N 06
2700K	82°	19 W	1568 lm	<25	IP20	81 lm/W	Magnus 4x Track ACDC Linear 27K W
2700K	53°	19 W	1354 lm	<18	IP20	71 lm/W	Magnus 4x Track ACDC Linear 27K M
2700K	32°	19 W	1441 lm	<9	IP20	75 lm/W	Magnus 4x Linear Track ACDC 27K N
2200K	82°	19 W	1402 lm	<25	IP20	74 lm/W	Magnus 4x Track ACDC Linear 22K W
2200K	53°	19 W	1312 lm	<16	IP20	62 lm/W	Magnus 4x Track ACDC Linear 22K M
2200K	32°	19 W	1193 lm	<9	IP20	62 lm/W	Magnus 4x Track ACDC Linear 22K N
5700K	83°	19 W	1737 lm	<26	IP20	91 lm/W	Magnus 4x Linear Track LVDC 57K W
5700K	53°	19 W	1638 lm	<18	IP20	87 lm/W	Magnus 4x Linear Track LVDC 57K M
5700K	32°	19 W	1490 lm	<9	IP20	78 lm/W	Magnus 4x Linear Track LVDC 57K N
4000K	82°	19 W	1812 lm	<26	IP20	94 lm/W	Magnus 4x Track LVDC Linear 4K W 07
4000K	53°	19 W	1737 lm	<18	IP20	90 lm/W	Magnus 4x Track LVDC Linear 4K M 08
4000K	32°	19 W	1666 lm	<9	IP20	88 lm/W	Magnus 4x Track LVDC Linear 4K N 09
3000K	82°	19 W	1635 lm	<25	IP20	87 lm/W	Magnus 4x Track LVDC Linear 3K W 10
3000K	53°	19 W	1556 lm	<11	IP20	81 lm/W	Magnus 4x Track LVDC Linear 3K M 11
3000K	32°	19 W	1465 lm	<9	IP20	76 lm/W	Magnus 4x Track LVDC Linear 3K N 12
2700K	82°	19 W	1568 lm	<25	IP20	81 lm/W	Magnus 4x Track LVDC Linear 27K W
2700K	53°	19 W	1354 lm	<18	IP20	71 lm/W	Magnus 4x Track LVDC Linear 27K M
2700K	32°	19 W	1441 lm	<9	IP20	75 lm/W	Magnus 4x Track LVDC Linear 27K N
2200K	82°	19 W	1635 lm	<25	IP20	87 lm/W	Magnus 4x Track LVDC Linear 22K W
2200K	53°	19 W	1312 lm	<16	IP20	62 lm/W	Magnus 4x Track LVDC Linear 22K M
2200K	32°	19 W	1193 lm	<9	IP20	62 lm/W	Magnus 4x Track LVDC Linear 22K N
