Neo Circ DT HD – Plus Light Tech

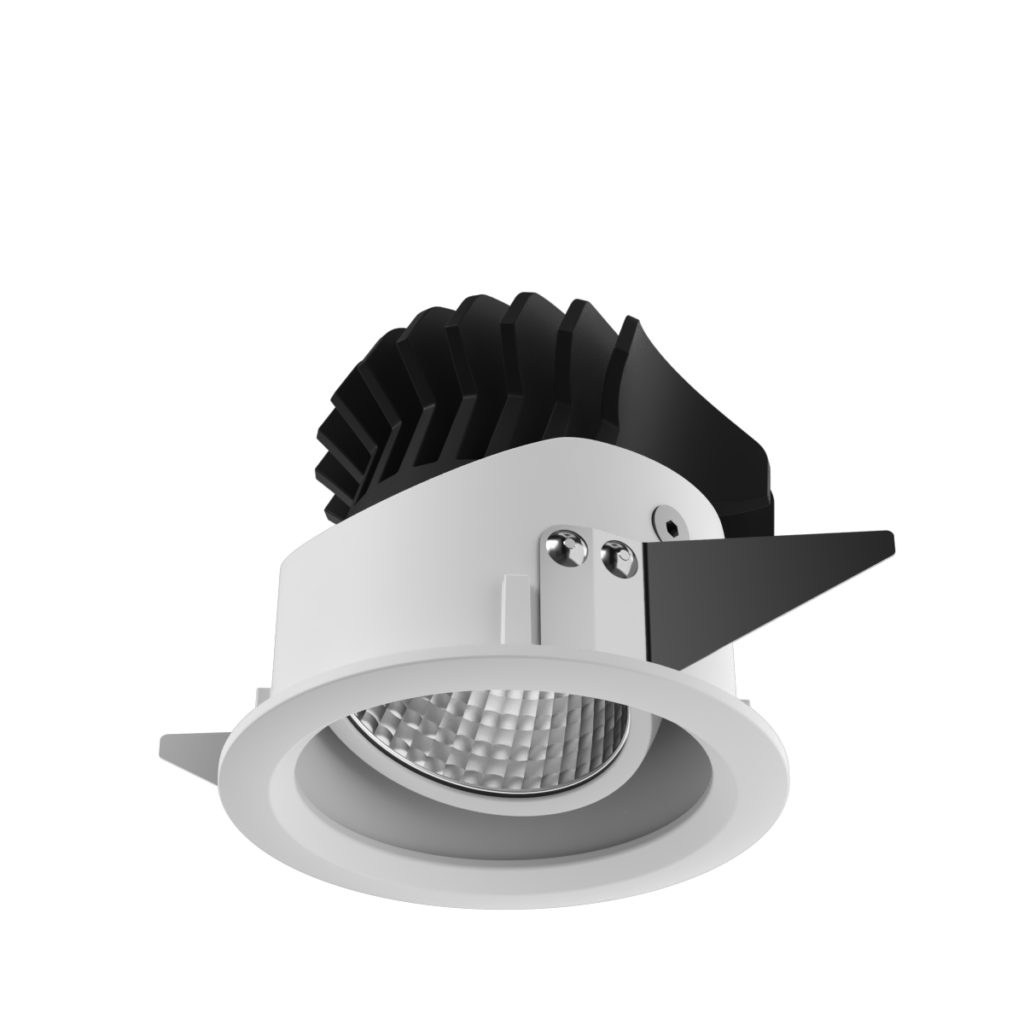

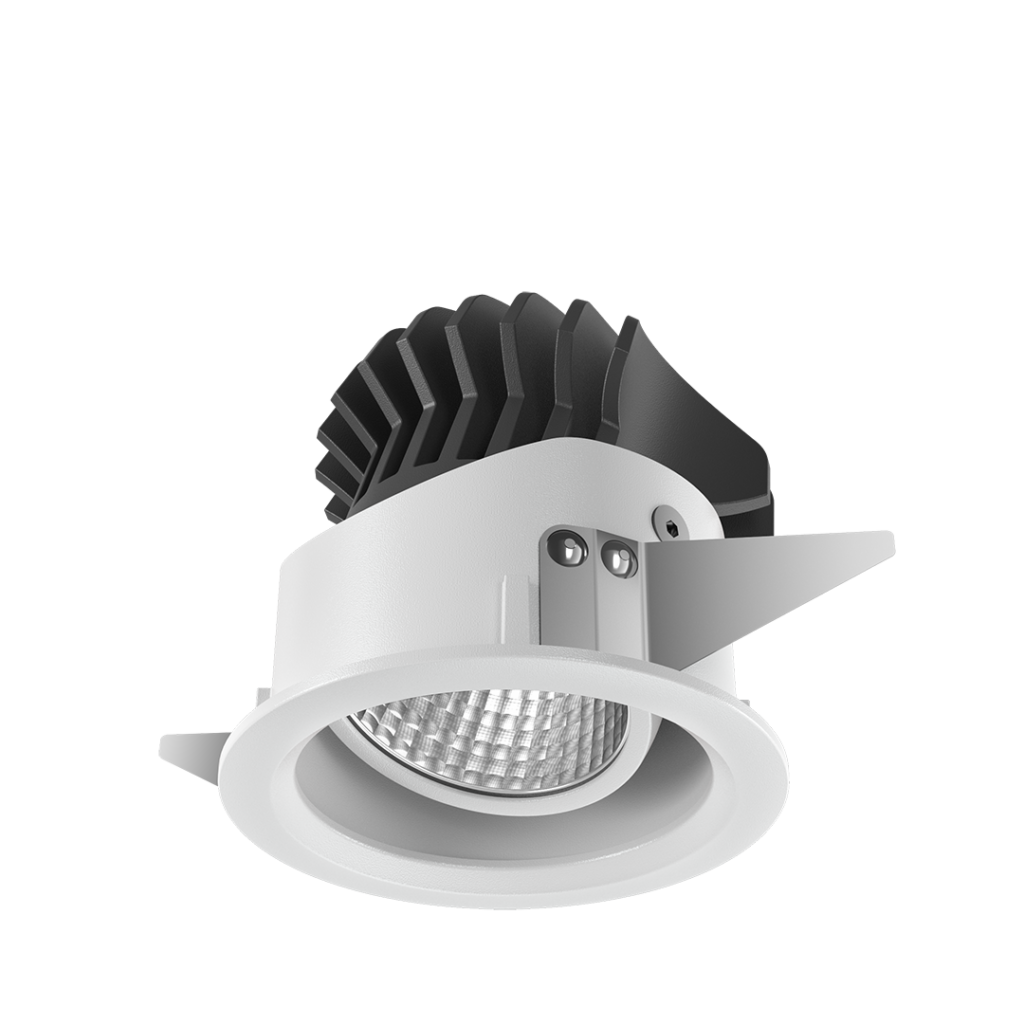

Neo Circ DT HD

Cutout = Ø78 mm

Highly efficient optics

Utilizing advanced LED technology, our lights deliver superior brightness while significantly reducing power usage. This also helps contribute to a greener environment by minimizing carbon footprint.

Degradation free – long life optics

With Alanod Miro Silver (Ultra-Technology) our products gives uniform lighting with highly accurate colours for the longer period of time without risk of ageing and yellowing. This gives pleasant experience of merchandise to the viewer and reduces maintenance expense of the ﬁxture for the merchandiser.

Reduced spillage – more concentrated light

With micro-facet technology, our products achieve a perfect cut-off, minimizing glare and ensuring comfortable illumination. This feature is particularly beneficial in creating visually comfortable spaces.

High CRI 90+

With New Edge patented technology Designed by bartenbach & IT ENSURE 40% more light as compared to conventional fixtures also reducing considerable Glare

Sharp cut-off, minimal spill. lndustry leading optics, crafted in exclusive partnership with Bartenbach

Technical Specifications

Color Temperature (CCT)	Luminaire Dimension	Beam Angle	Wattage	Lumens	UGR	IP Rating	Efficacy	Download TDS
3000K		24º	12W	1083 lm	<9	IP20	90 lm/W	Neo Circ DT Recessed Downlight 3K 24º
3000K		42°	12W	1132 lm	<9	IP20	96 lm/W	Neo Circ DT Recessed Downlight 3K 42º
4000K		24°	12W	1221 lm	<9	IP20	101 lm/W	Neo Circ DT Recessed Downlight 4K 24°
4000K		42°	12W	1192 lm	<9	IP20	102 lm/W	Neo Circ DT Recessed Downlight 4K 42º
