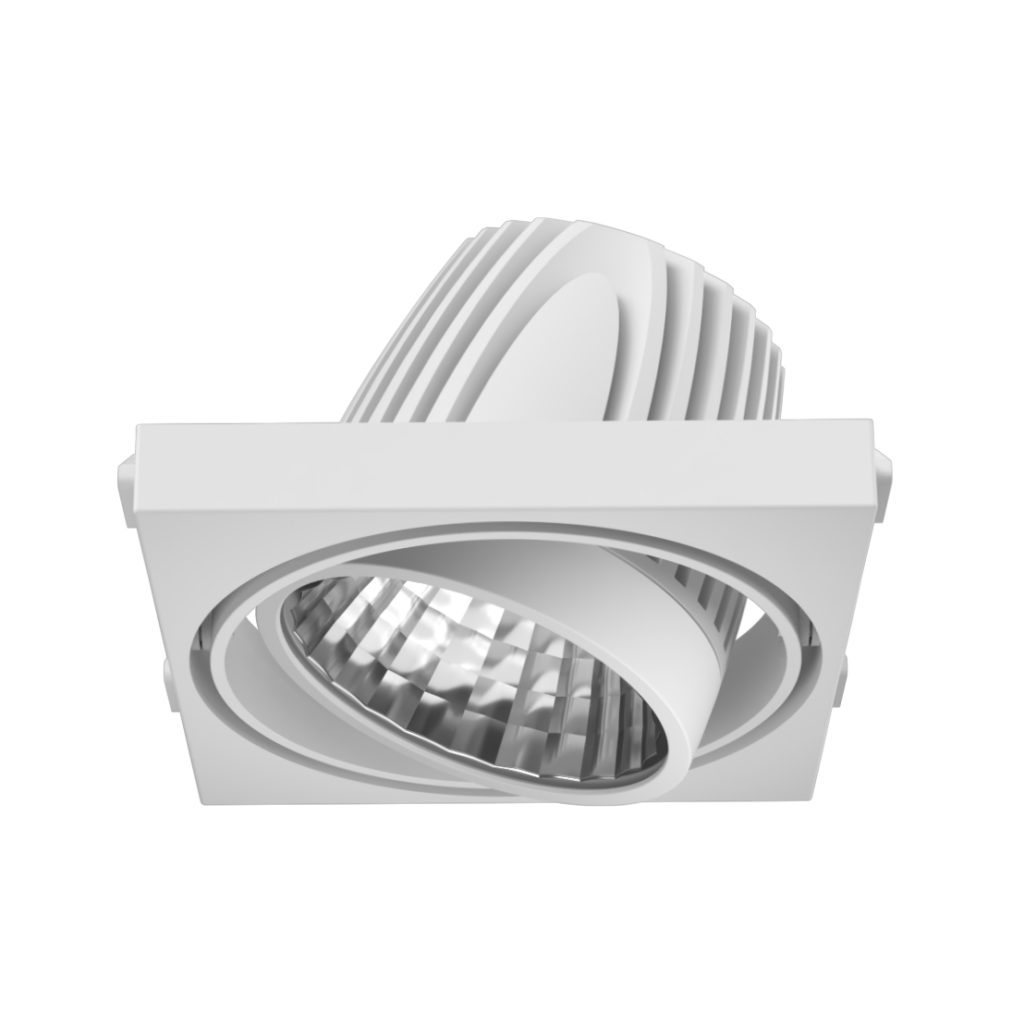

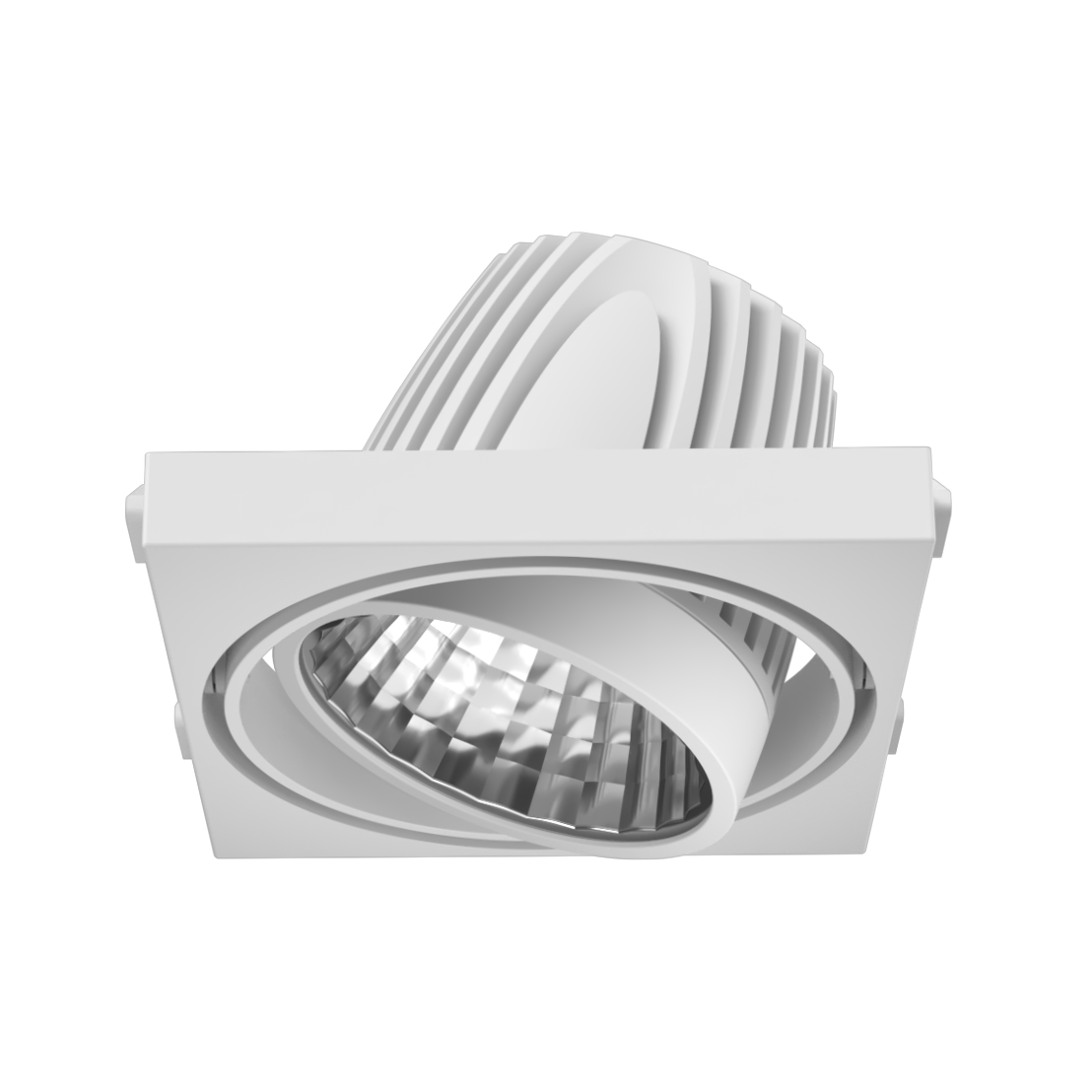

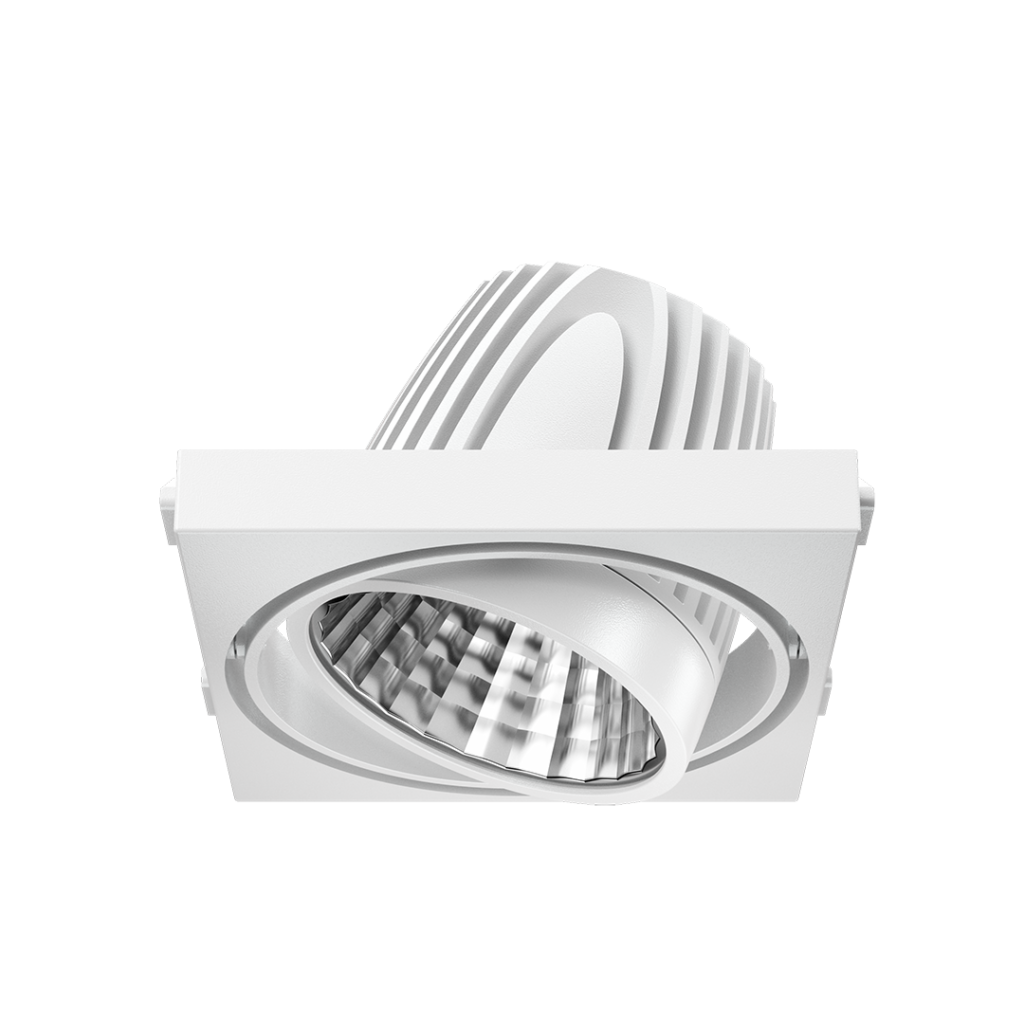

Ray M Flex Spotlight

UGR :

<9

Efficacy (Max) :

111 lm/W

CRI

90+

Aperture Size :

80 mm

Beam Angles :

19º, 27º, 64º

IP :

IP20

Illuminate your spaces with precision and efficiency using our advanced LED lighting Fixture. Designed to deliver uniform, homogeneous lighting with minimal spillover, this fixture maximizes lumens output while creating a clean, refined ambiance. Engineered with state-of-the-art Bartenbach optics, this fixture ensures top-tier energy efficiency, providing optimal brightness for any setting. Our LED light?s innovative design also reduces glare, making it ideal for a wide range of applications?from modern workspaces to cozy residential spaces. Upgrade to a lighting solution that combines sleek style with unparalleled performance.

Highly efficient optics

Utilizing advanced LED technology, our lights deliver superior brightness while significantly reducing power usage. This also helps contribute to a greener environment by minimizing carbon footprint.

Degradation free – long life optics

With Alanod Miro Silver (Ultra-Technology) our products gives uniform lighting with highly accurate colours for the longer period of time without risk of ageing and yellowing. This gives pleasant experience of merchandise to the viewer and reduces maintenance expense of the ﬁxture for the merchandiser.

Reduced spillage – more concentrated light

With micro-facet technology, our products achieve a perfect cut-off, minimizing glare and ensuring comfortable illumination. This feature is particularly beneficial in creating visually comfortable spaces.

High CRI 90+

With New Edge patented technology Designed by bartenbach & IT ENSURE 40% more light as compared to conventional fixtures also reducing considerable Glare

Sharp cut-off, minimal spill. lndustry leading optics, crafted in exclusive partnership with Bartenbach

Technical Specifications

Color Temperature (CCT)	Beam Angle	Wattage	Lumens	UGR	IP Rating	Efficacy	Download TDS
3000K	20°	31W	3212 lm	<9	IP20	103 lm/W	Ray M Flex Spotlight 3K 31W 20°
3000K	27°	31W	3215 lm	<9	IP20	102 lm/W	Ray M Flex Spotlight 3K 31W 27°
3000K	64°	31W	3208 lm	<9	IP20	101 lm/W	Ray M Flex Spotlight 3K 31W 64°
3000K	20°	35W	3453 lm	<9	IP20	99 lm/W	Ray M Flex Spotlight 3K 35W 20°
3000K	27°	35W	3486 lm	<9	IP20	98 lm/W	Ray M Flex Spotlight 3K 35W 27°
3000K	64°	36W	3491 lm	<9	IP20	98 lm/W	Ray M Flex Spotlight 3K 36W 64°
3500K	20°	31W	3530 lm	<9	IP20	115 lm/W	Ray M Flex Spotlight 3.5K 31W 20°
3500K	27°	31W	3511 lm	<9	IP20	114 lm/W	Ray M Flex Spotlight 3.5K 31W 27°
3500K	64°	31W	3459 lm	<9	IP20	112 lm/W	Ray M Flex Spotlight 3.5K 31W 64°
3500K	20°	34W	3821 lm	<9	IP20	111 lm/W	Ray M Flex Spotlight 3.5K 34W 20°
3500K	27°	34W	3811 lm	<9	IP20	110 lm/W	Ray M Flex Spotlight 3.5K 34W 27°
3500K	64°	34W	3757 lm	<9	IP20	109 lm/W	Ray M Flex Spotlight 3.5K 34W 64°
4000K	20°	31W	3314 lm	<9	IP20	106 lm/W	Ray M Flex Spotlight 4K 31W 20°
4000K	27°	31W	3360 lm	<9	IP20	107 lm/W	Ray M Flex Spotlight 4K 31W 27°
4000K	64°	31W	3383 lm	<9	IP20	108 lm/W	Ray M Flex Spotlight 4K 31W 64°
4000K	20°	35W	3593 lm	<9	IP20	104 lm/W	Ray M Flex Spotlight 4K 35W 20°
4000K	27°	35W	3623 lm	<9	IP20	104 lm/W	Ray M Flex Spotlight 4K 35W 27°
4000K	64°	35W	3626 lm	<9	IP20	105 lm/W	Ray M Flex Spotlight 4K 35W 64°
